PandwaRF Marauder Standard

790,001 869,00

Pocket-sized, portable RF tool for autonomous capture of RF data, typically keypress of keyfobs (alarms, cars, gate openers).

Features

  • Rolling code support
  • Included: Kaiju Gate Openers Pack Pro License (No Licence/1Y/2Y/5Y/Perpetual)
  • Supported frequencies: 2
  • Data replay from the same Marauder
  • Memory size: 512 captures
  • Export captured data into phone storage
  • Replay captured data on Rogue Pro
  • Replay captured data on Rogue Gov
  • Timestamps of each capture

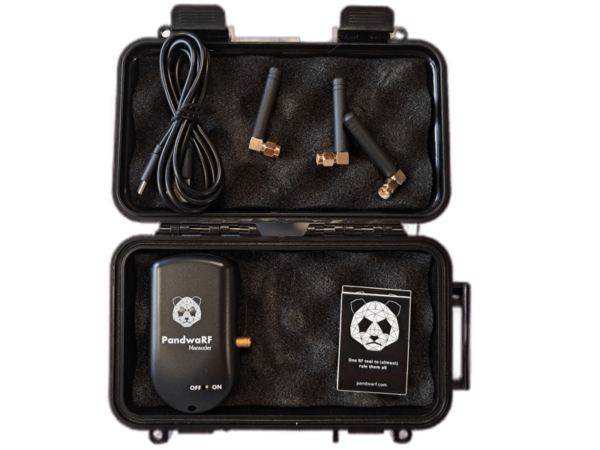

Included

  • 1 PandwaRF Marauder Standard
  • 315 miniature SMA antenna
  • 433 miniature SMA antenna
  • 868-915 miniature SMA antenna
  • Micro USB cable

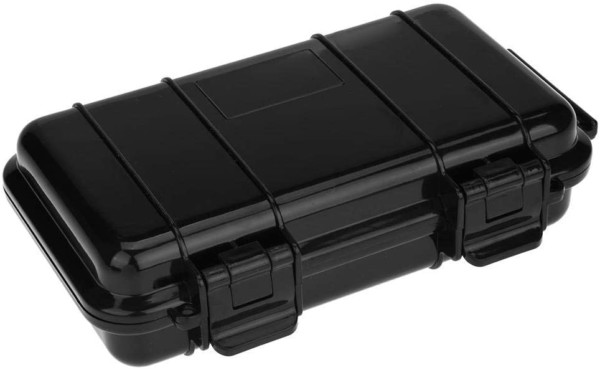

  • Protective hard-case.

Note: Non-contractual picture. The antennas and USB cables might vary in number, shape and size.
Note: License is activated at first connection with the PandwaRF Android app. Contact us to solve any license related issue.

SKU: PRF_MS Categories: ,

Description

Marauder has been developed for activities requiring a discreet capture of RF data, typically keypress of keyfobs (alarms, cars, gate openers…).

The Marauder can be set up to automatically listen and record all RF data on pre-configured frequencies. Captured data is automatically demodulated and saved internally in the product’s internal memory. RF data can be replayed when needed using the dedicated Android application.

Once started, the Marauder is entirely autonomous.

Features

Not connected to smartphone

Marauder doesn’t require a smartphone to work. Once configured, it can be placed within the target device range and record RF binary data. RF setup/capture/replay can be done using built-in buttons or using the Android application (preferred method). Device can be set up to automatically record all RF data on preconfigured frequencies. Data is saved internally and can be replayed when needed. Using this option the product becomes entirely autonomous.

Dedicated Android application

The Marauder includes a dedicated Android application with a simple interface, focused on autonomous listening. All you need to do is set the frequency to listen and the Marauder will start capturing.

Export captured data into phone storage

Captured data can be exported to a JSON file in the phone’s internal storage.

Replay from the same Marauder

When you retrieve your Marauder, it synchronizes with the app and captured data is saved on the smartphone. Data can be replayed when needed or exported for analysis.

Timestamps of each capture

Each data includes the date and time of the capture. It allows user to easily distinguish between captures of interest and captures that are out of scope.

Multi frequency

The Marauder can be set up to listen and record data on one or 2 pre-configured frequencies, based on the variant.RF capture Timestamps

For each recorded RF capture, the Marauder Standard also stores a timestamp to precisely identify when the capture was done (1s precision). When synchronized, the application displays the date and time of each RF capture, making it easy to keep track of the stored RF data.

Replay captured data on any PandwaRF Rogue

Data can be transferred from a Marauder to another PandwaRF Rogue version (Pro or Gov), where it can be replayed. This allows better teamwork, where one user records the data and sends it to other users for replaying captures.



Note: Non-contractual picture. The antennas might vary in number, shape and size based on the supplier we use at the moment.

Additional information

Weight1 kg
Dimensions24 × 19 × 10 cm
Gate Opener Pro

No License, 1 Year, 2 Years, 5 Years, Lifetime
